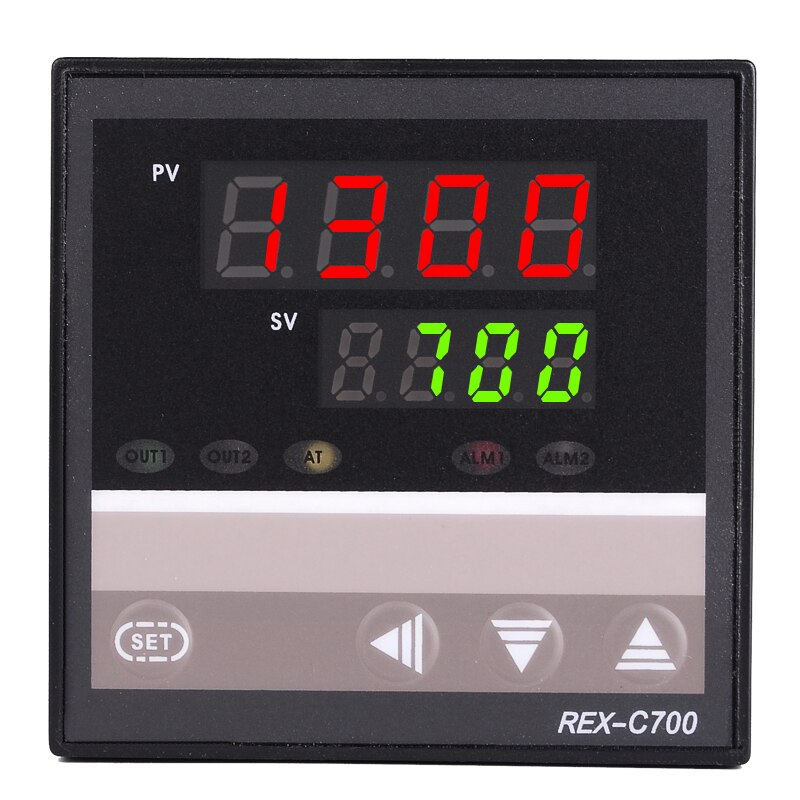

REX-C700
Specification:
Model number: REX-C700
Accuracy: +/- 0.5% of full scale
Supply voltage: 85-264Vac, 50/60 Hz
Input types- Thermocouple: K, J, R, S, B, E, N, T
RTD: Cu50, Pt100
Voltage: 0-50mV, 0-5V, 1-5V
Current: 0-20mA, 4-20mA
Expanded:Remain above inputs, allow customer specify
an input type (maybe need Indexing table).
Output types:Mechanical Relay, SSR, Current, Voltage, Triac
Power consumption:Less than 5 VA
Control method
PID Control (with auto-tuning) or Self-tuning, or ON/OFF
Setting method
Touch switch
Indication method
8-segment 4-digital display and LED indication
Alarms
Deviation High, Low, High/Low, Band,
Process High, Low Set value High, Low
Sampling period: 0.5s
Electromagnetic compatibility
IEC61000-4-4 (Electrical fast transient burst),
4KV/5KHz; IEC61000-4-5 (Surge), 4kv
Isolation voltage
>=2300v among the terminal of power, relay contact
and signal; >=600v between two isolated weak signal terminal
Operating temperature
0 to 50 °C (32 to 122 °F)
Operating humidity
30-85% RH max, non-condensing
Alias name
REX-C pid temperature controller, intelligent temperature controller
