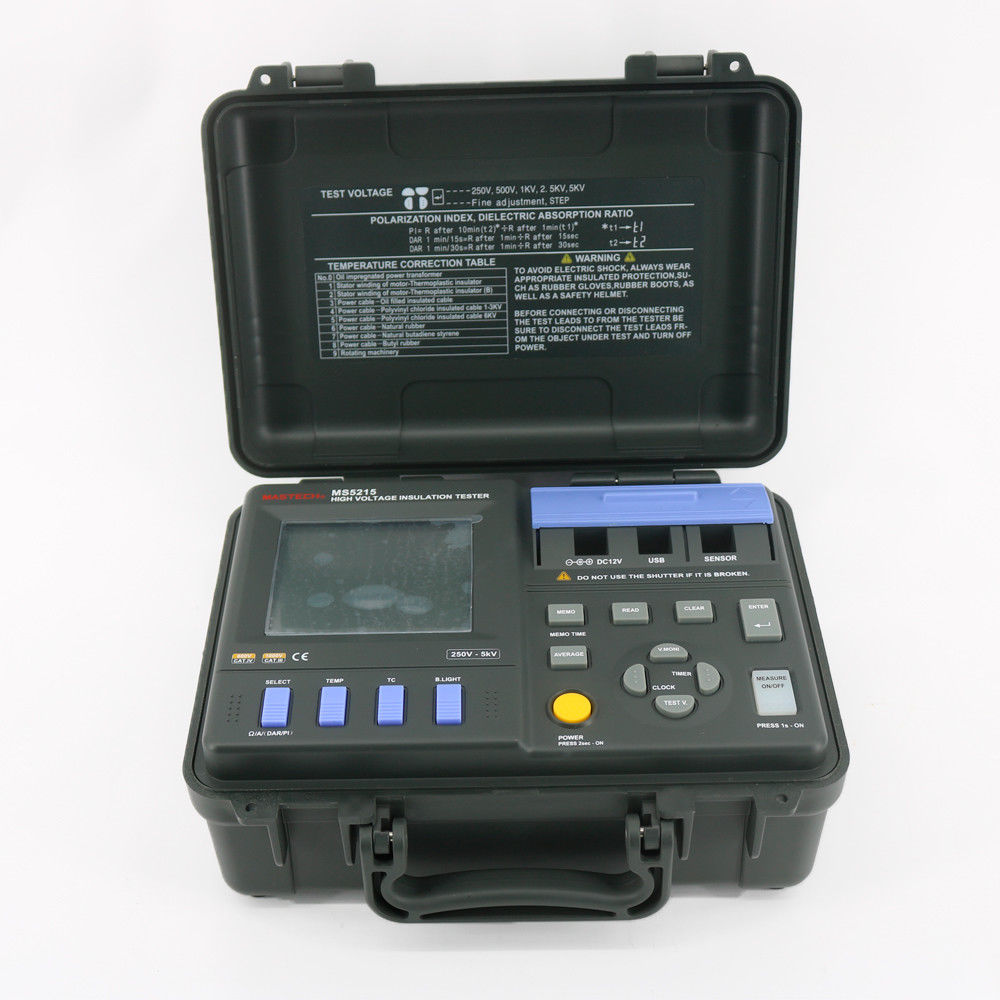

This meter is an insulation resistance tester with broad range of measurement which can be applied to various situations from low-voltage to high-voltage measurements. For example, measuring the insulation of high-voltage receiving station and transformer substation, as well as the electric motor and cable.
● Broad Range of Testing Voltage:
-Testing voltages with broad range can be generated (from 250 V to 5 KV).
-Testing voltage can be preset as 250 V, 500 V, 1 KV, 2.5 KV, or 5 KV, or as a voltage increasing or decreasing in steps of 25 V or 100 V.
● Insulation Diagnosis:
-PI and DAR can be automatically calculated and displayed;
-Step-voltage measurements and temperature compensation is carried out.
● Large Storage Memory:
-Up to 100 manually tested data and 10 groups of log-test data can be saved.
-Test data can be read on LCD, or uploaded to PC
● Clear Display:
-Large-screen display. Test result is displayed with indication through a graduation bar.
-LCD screen is backlit, which is suitable for viewing when it is dark.
● PC Communication:
-The meter is equipped with a USB interface, through which the saved test data can be uploaded to a PC for further table/figure making and report generating with convenience.
● Robust and Durable:
-With a compact structure, the tester is robust, durable and portable.
● Powered by Batteries:
-With a selection switch, the tester can be powered by an alkaline battery.
-This tester can be continuously operated for a longer period of time than similar meters if a LR14 alkaline battery is used.
Specifications
Operating Voltage Measuring Range Accuracy
250V DC 0.01MΩ~2.5GΩ ±(5%+5)
2.51GΩ~250GΩ ±(20%+10)
500V DC 0.01MΩ~5.0GΩ ±(5%+5)
5.01GΩ~500GΩ ±(20%+10)
1000V DC 0.01MΩ~10GΩ ±(5%+5)
10.01GΩ~500GΩ ±(20%+10)
501GΩ~999GΩ ±(30%+20)
2.5KV DC 0.01MΩ~25GΩ ±(5%+5)
25.1GΩ~500GΩ ±(20%+10)
501GΩ~999GΩ ±(30%+20)
1TΩ~2.5TΩ ±(30%+40)
5KV DC 0.01MΩ~50GΩ ±(5%+5)
50.1GΩ~500GΩ ±(20%+10)
501GΩ~999GΩ ±(30%+20)
1TΩ~5TΩ ±(30%+40)
Leakage Current
Range Measuring Range Accuracy
10nA 1.00nA~9.99nA ±(15%+1nA)
100nA 9.0nA~99.9nA ±(15%+5)
1000nA 100nA~999nA ±(2.5%+5)
10μA 0.90μA~9.99μA
100μA 9.0μA~99.9μA
1000μA 90μA~999μA
3mA 0.90mA~3.00mA
Resistance
Range of insulation Range of humidity
Range of temperature
0Ω~100MΩ <85% RH 23℃ ±5℃
73℉ ±9℉
101Ω~20GΩ <75% RH
21GΩ~500GΩ <65% RH
501GΩ~5TΩ <55% RH
Voltage
Test Mode DC Voltage AC Voltage
Test Range ±(50V~1000V)
±50V~750V
(50Hz~60Hz)
Precision error ±(5%+5) ±(5%+5)
Input Resistance Approx. 10MΩ Approx. 10MΩ
Temperature
Measuring Range Measuring Precision
-10℃~0℃ ±1.5℃
0℃~40℃ ±2.0℃
40℃~70℃ ±1.5℃
